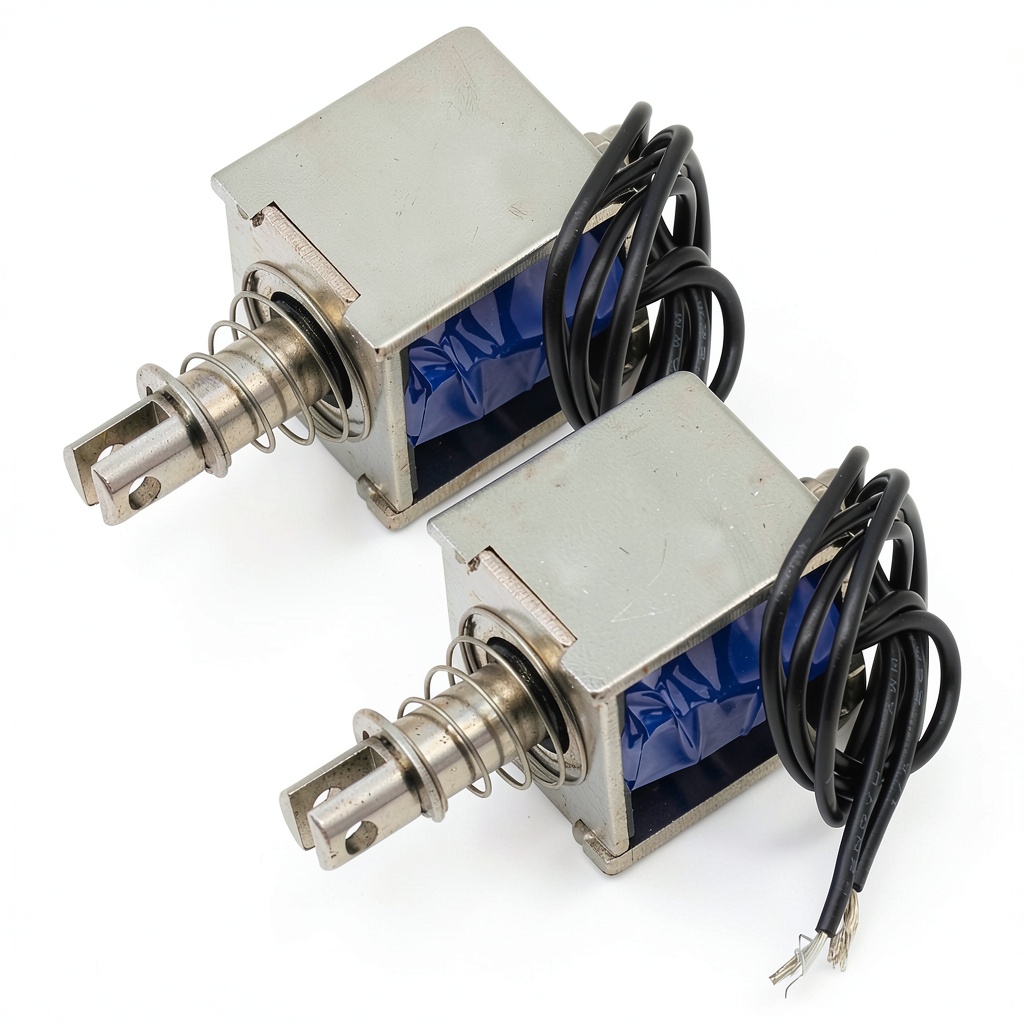

DC12V Frame Solenoid 10mm Stroke Push Pull 20N Force 2PCS GODIYMODULES

Description

Product Overview

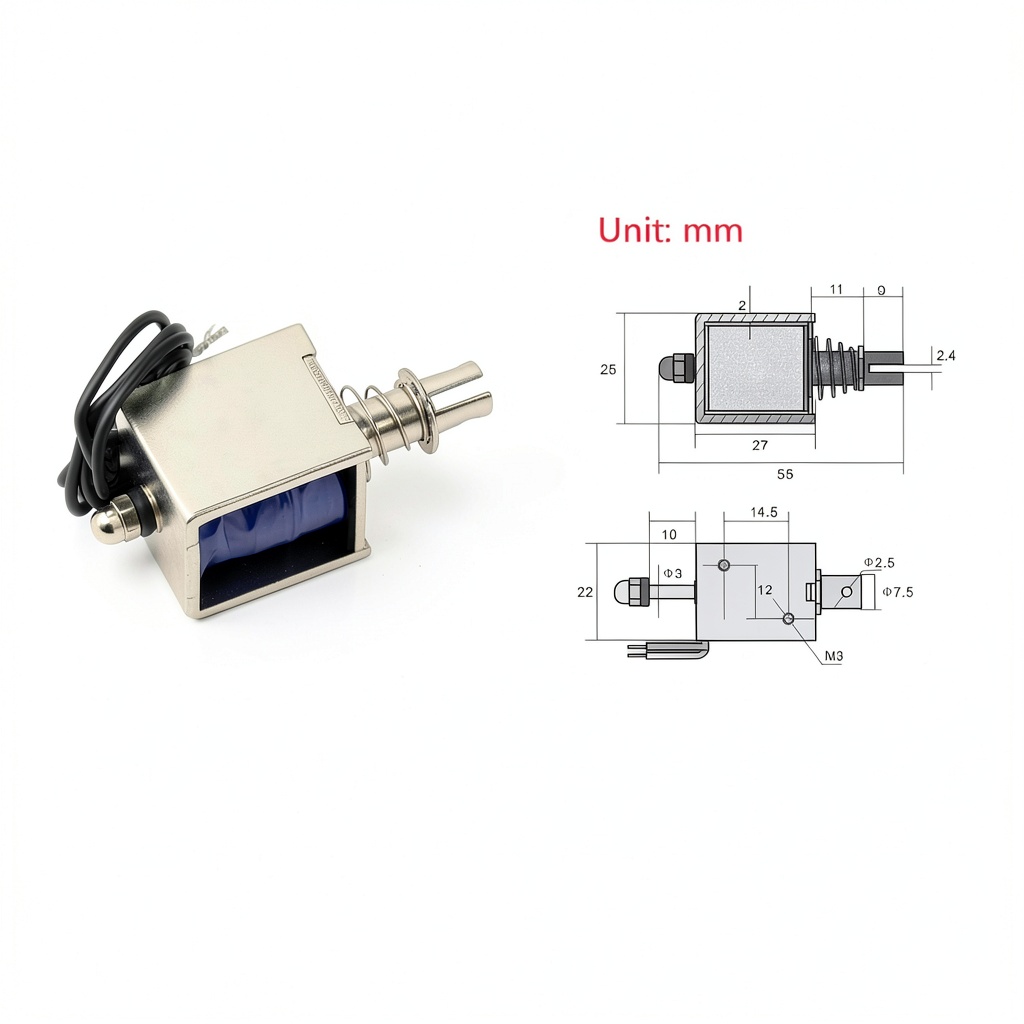

The DC12V Frame Solenoid from GODIYMODULES is a compact, high‑performance electromechanical actuator designed for demanding industrial applications. Engineered with an open frame construction, this solenoid offers a 10 mm stroke and delivers a robust 20 N (approximately 2 kg) pulling force, making it suitable for a wide range of push‑pull mechanisms. Operating at a nominal 12 V DC and drawing a maximum of 2 A, the device balances power efficiency with reliable actuation. The integrated mounting board simplifies installation on printed circuit boards or control panels, while the sturdy coil and magnetic core ensure consistent performance over extended cycles. Dimensions of 3.94 × 1.97 × 0.39 inches and a lightweight profile of 4.94 oz provide flexibility in tight spaces, and the product’s compliance with industry standards guarantees compatibility with existing automation systems.

Usage

This solenoid excels in environments where precise linear motion is required. Typical use cases include robotic grippers, valve actuation, conveyor belt locking mechanisms, and automated testing rigs. Its rapid response time and repeatable stroke make it ideal for high‑speed pick‑and‑place equipment, while the open frame design allows for easy integration into custom housings or enclosures. The device is also well‑suited for laboratory instrumentation, where reliable force output and low power consumption are critical. Whether deployed in a manufacturing line, a research lab, or a prototype development station, the DC12V solenoid provides the necessary durability and performance to meet rigorous operational demands.

Why Choose Us

Choosing the GODIYMODULES DC12V Frame Solenoid means selecting a product backed by meticulous engineering and stringent quality control. Each unit undergoes comprehensive testing for coil resistance, magnetic force consistency, and thermal stability, ensuring that you receive a component that performs reliably from the first activation onward. Our open frame architecture reduces material waste and enables faster heat dissipation, extending the solenoid’s service life even under continuous operation. In addition, we provide responsive technical support and a clear warranty policy, giving you confidence that any integration challenges will be addressed promptly. By prioritizing both product excellence and customer satisfaction, we deliver a solution that not only meets but exceeds the expectations of engineers and system integrators.

Key Features

• High pulling force of 20 N enables reliable actuation of medium‑load mechanisms.
• Compact 10 mm stroke provides precise linear movement for space‑constrained designs.
• Open frame with built‑in mounting board simplifies installation on PCBs and control panels.
• Low power consumption at 12 V DC and 2 A current supports energy‑efficient operation.
• Dedicated after‑sales support and warranty ensure long‑term reliability and peace of mind.

FAQ

What is the maximum operating temperature for this solenoid?

The solenoid is rated for continuous operation up to 80 °C (176 °F). Exceeding this temperature may reduce magnetic performance and shorten the component’s lifespan.

Can the solenoid be used with AC power sources?

This model is specifically designed for DC operation at 12 V. Using an AC source is not recommended and could cause overheating or damage to the coil.

How do I mount the solenoid onto a printed circuit board?

The integrated mounting board features standard through‑hole pads that align with the PCB’s layout. Align the holes, insert the pins, and solder securely to achieve a stable mechanical and electrical connection.

Is the solenoid suitable for outdoor applications?

While the solenoid’s open frame design offers good heat dissipation, it is not sealed against moisture or dust. For outdoor use, it should be installed within a protective enclosure that shields it from environmental contaminants.

What warranty does GODIYMODULES provide?

We offer a one‑year limited warranty covering manufacturing defects. Should any issue arise within this period, contact our support team for a replacement or repair solution.
