uxcell DC 12V 60N Push Pull Open Frame Solenoid Electromagnet

Description

Product Overview

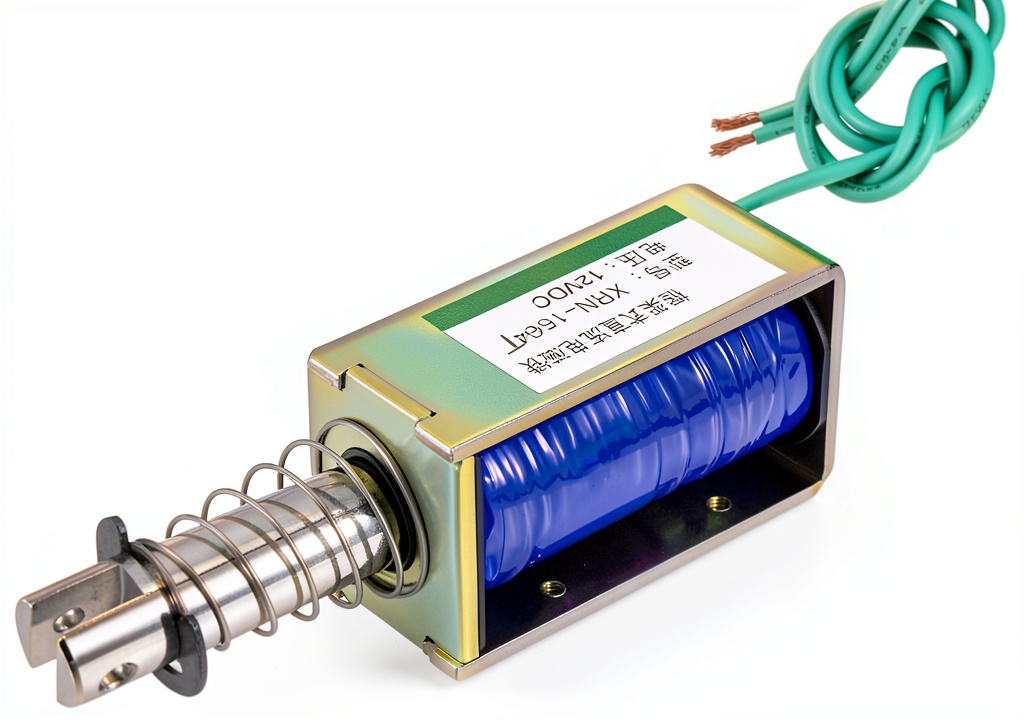

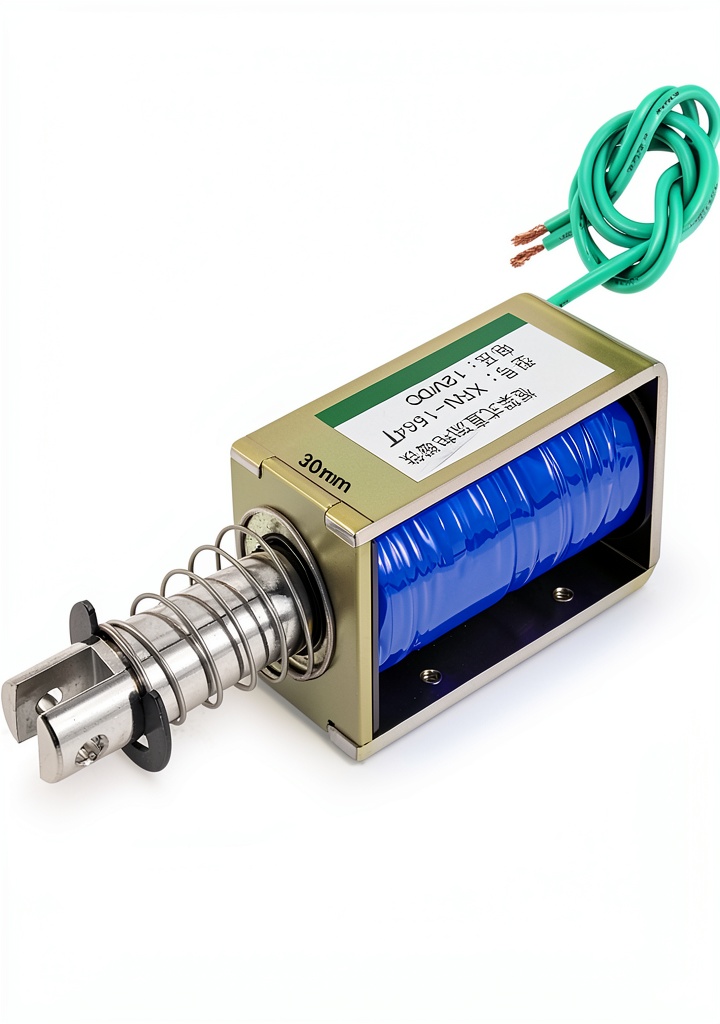

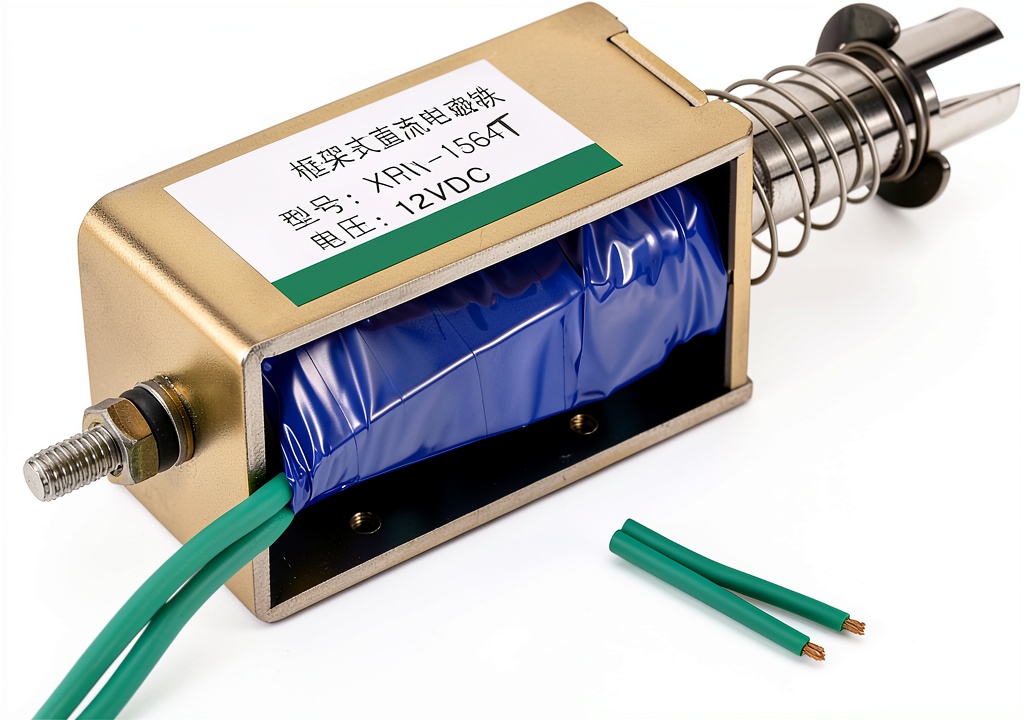

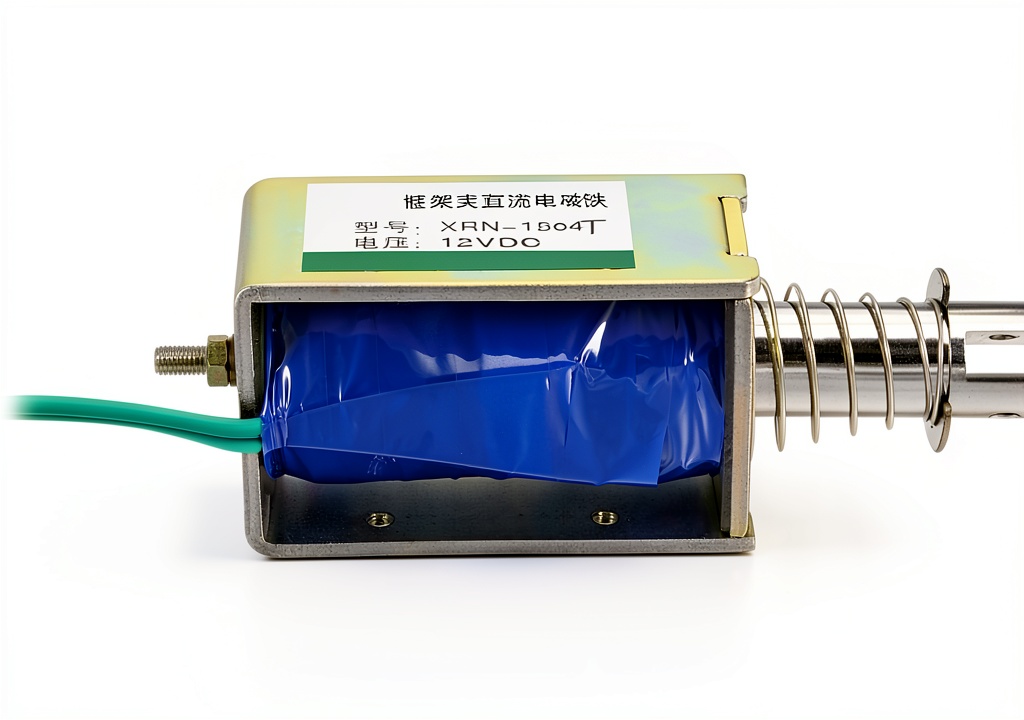

The uxcell DC 12V 60N solenoid is engineered to offer precise linear motion with a 10 mm stroke while maintaining a compact footprint. Built with a robust open‑frame architecture, the device combines a high‑quality plastic housing with a metal internal coil, delivering excellent thermal stability and electrical insulation. The copper coil is wound tightly to ensure consistent magnetic force, and the plunger incorporates a spring return mechanism for rapid reset. With a rated force of 60 N, this push‑pull type solenoid is ideal for applications that demand reliable actuation and quick response times. Its dimensions—3.94 × 1.57 × 1.18 inches—and lightweight design (12.8 oz) make it easy to integrate into tight spaces, while the DC 12 V operating voltage aligns with standard control systems used in industrial equipment.

Usage

Designed for versatility, the uxcell solenoid excels in a range of environments. In vending machines, it drives the dispensing mechanism, ensuring smooth product release. Sorting machines benefit from its rapid actuation to direct items onto different paths. Door lock systems rely on its strong pulling force to secure latches, while transport equipment uses it for valve control and material handling. The solenoid’s open‑frame design allows for easy mounting on panels, brackets, or custom fixtures, making it suitable for both OEM integration and retrofit projects. Its low power consumption and stable performance under continuous operation make it a trusted component for office facilities, household appliances, and game machines that require dependable motion control.

Why Choose Us

Choosing the uxcell DC 12V 60N solenoid means selecting a product backed by rigorous quality assurance and a reputation for durability. Each unit undergoes comprehensive testing for coil resistance, magnetic force consistency, and temperature tolerance, ensuring it meets or exceeds industry standards. The combination of plastic and metal materials provides a balance of lightweight handling and structural strength, reducing wear over prolonged cycles. Additionally, uxcell offers responsive technical support and a clear warranty policy, giving customers confidence that any issues will be addressed promptly. Our commitment to continuous improvement means the solenoid benefits from the latest manufacturing techniques, delivering superior performance compared with generic alternatives.

Key Features

• High 60 N pulling force ensures reliable actuation for demanding applications.
• Compact open‑frame design simplifies installation in confined spaces.
• Durable plastic housing with metal coil provides long‑term stability and heat resistance.
• Spring‑return plunger enables fast reset and reduces cycle time.
• Dedicated uxcell customer support and warranty for peace of mind.

FAQ

What is the recommended duty cycle for this solenoid?

The solenoid is optimized for short bursts of operation. For best results, limit continuous activation to about 2 seconds per cycle to prevent overheating.

Can this solenoid be used with AC power sources?

No. The device is designed specifically for DC 12 V input. Using an AC source may damage the coil and affect performance.

Is the solenoid compatible with standard mounting brackets?

Yes. The open‑frame construction includes pre‑drilled holes that align with common bracket dimensions, allowing easy attachment to panels or custom frames.

What safety certifications does the product have?

The solenoid complies with CE and RoHS standards, confirming it meets European safety, health, and environmental requirements.

How do I troubleshoot a weak magnetic response?

First, verify the power supply provides a stable 12 V DC. Check for any wiring resistance or loose connections. If the issue persists, inspect the coil for signs of damage and contact uxcell support for further assistance.
